Importance of rebar in concrete footings for solid foundations

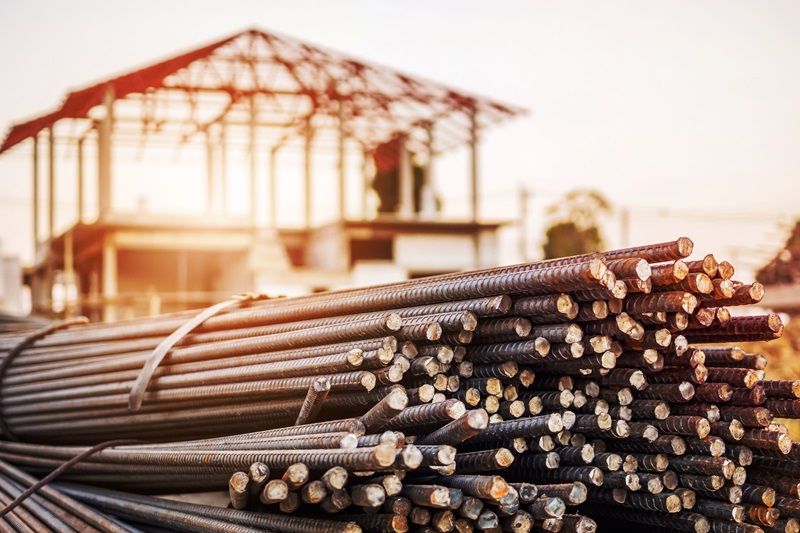

Rebar, short for reinforcement bar, is a steel bar or mesh of steel wires used as a structural component in concrete. It is strategically placed within the concrete to provide added strength, support, and durability to the structure. Rebar comes in various grades and shapes, depending on the specific needs of the project.

The role of rebar in concrete footings

Increased strength: The tensile strength of concrete is relatively low compared to its compressive strength. By adding rebar, which has high tensile strength, it effectively compensates for this weakness. This results in a concrete footing that can better withstand the forces and loads it will experience over time.

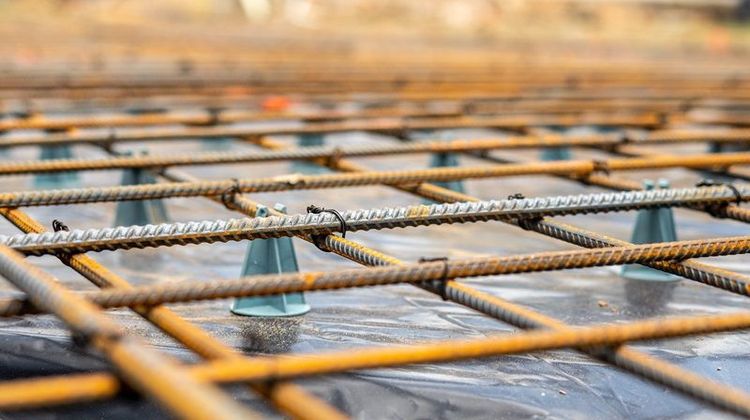

Reinforcements are typically positioned at the bottom of the footing's tension side, following a standard practice. In square footing, rebar is evenly distributed in both horizontal and vertical directions. In the instance of a rectangular footing, the long side features uniform rebar placement, but the short side differs.

For instance, if the top bars are positioned too low or the bottom bars are raised by an extra half inch in a 6-inch-deep slab, it could potentially reduce the load-carrying capacity by 20%.

Crack control: Concrete is prone to cracking, especially under changing weather conditions and structural loads. These cracks can compromise the integrity of the footing. Rebar provides ductility in the concrete structure which limits the spread of these cracks, preventing them from becoming major issues that compromise the foundation's strength.

Load distribution: In structures that carry heavy loads, such as commercial buildings or multi-story houses, rebar ensures even load distribution. Without rebar, the concrete might be more susceptible to uneven settling or shifting, leading to structural instability and damage over time.

Longevity: Rebar greatly contributes to the longevity of the concrete footing. Over time, concrete can degrade due to factors like weather, moisture, and natural wear and tear. The rebar helps slow down this deterioration, maintaining the foundation's structural integrity for many years.

Resistance to environmental factors: Rebar adds a layer of protection against environmental factors like earthquakes and freeze-thaw cycles. In regions prone to seismic activity, rebar can prevent significant damage by improving the footing's ability to flex and absorb energy. In colder climates, rebar helps the concrete withstand the expansion and contraction caused by freezing and thawing, reducing the risk of cracks and damage.

Compliance with building codes: Many building codes and regulations require the use of rebar in specific types of concrete footings. Adhering to these codes is essential not only for safety but also for legal and insurance purposes. Using rebar ensures that your construction meets or exceeds these requirements.

Factors influencing rebar size

Structural load: one of the primary factors influencing rebar size is the expected structural load. Heavier loads, such as in industrial facilities or multi-story buildings, require thicker and stronger rebar to provide the necessary support. Engineering calculations are used to determine the appropriate size and quantity of rebar based on the load-bearing requirements.

Concrete strength: Stronger concrete often requires larger and more numerous rebars to effectively transfer and distribute forces. The combination of concrete strength and rebar size must be in harmony to achieve structural cohesion.

Environmental conditions: Environmental factors, including exposure to corrosion-inducing elements like saltwater, chemicals, or extreme temperatures, impact the choice of rebar size and type. In harsh environments, stainless steel or epoxy-coated rebar or specially alloyed rebar steel with improved corrosion resistance property may be necessary to enhance durability and longevity.

Span and spacing: The distance between rebar supports, also known as "Spacing," depends on the structure's dimensions and design. Adequate spacing ensures the rebar is properly distributed throughout the concrete to provide uniform support and resistance to tension.

Design considerations based on structural needs

Tension and compression: Rebar sizing is not a one-size-fits-all solution. Different areas within a structure may experience varying forces, such as tension or compression. Tension zones require more substantial rebar to resist pulling forces, while compression zones may require a different configuration to support the weight effectively.

Lap length: In cases where rebar cannot be installed as a single piece, lap lengths are critical. These are the overlapping sections of rebar that maintain structural integrity. Designers must calculate the appropriate lap lengths based on structural requirements, ensuring that load transfer is seamless.

Development length: The development length is the minimum length of rebar that must be embedded within concrete to ensure a secure bond. Design considerations should account for the development length required to maintain the strength and stability of the structure.

Shape and spacing: The design should also consider the shape of the rebar, whether it's in the form of straight bars, bent shapes, or mesh. The arrangement and spacing of rebar must be carefully planned to reinforce the specific areas of a structure based on its intended use.

Conclusion

The importance of rebar in concrete footings cannot be overstated. It is the backbone of a strong, stable, and durable foundation. By reinforcing concrete with rebar, builders can create structures that are not only safe but also capable of withstanding the test of time. The use of rebar in concrete footings is a wise investment in the longevity and stability of any building, whether it's a home, a commercial property, or an infrastructure project. So, when it comes to constructing a solid foundation, always remember that rebar is the unsung hero that keeps your structure standing strong.
