All about the I beams in construction

The I beam stands as the most frequently utilised beam in the construction of structural steel. Its design and composition play a vital role in enabling the I beam to effectively support diverse heavy loads.

The I beam, also referred to as H, W, wide, universal beam, or rolled joist, is a structural steel shape commonly employed in building construction. Its primary function is to serve as a supportive element within structures. These beams possess the ability to endure diverse loads and maintain their structural integrity.

 Design of an I Beam

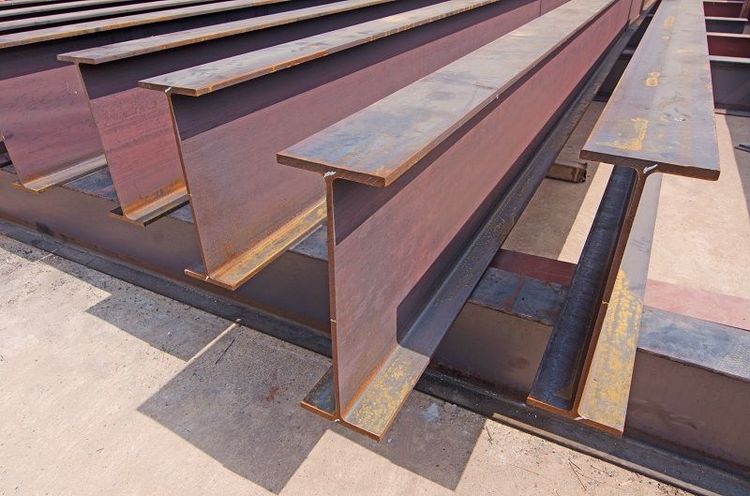

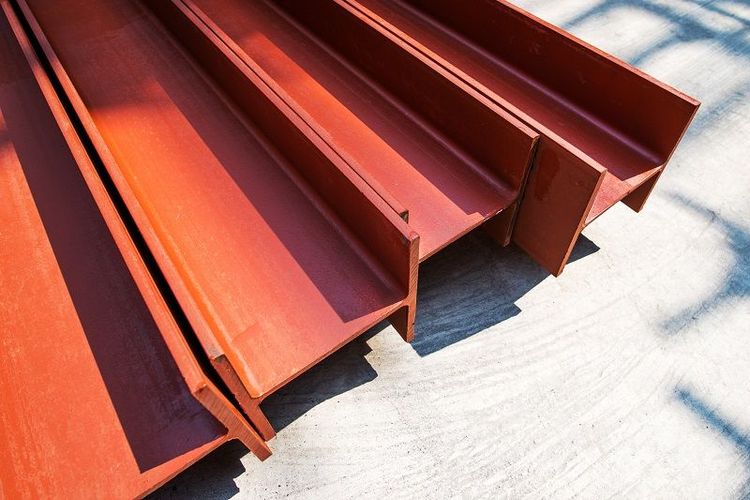

I beams are created through the assembly of two elongated planes known as flanges, which are connected by a perpendicular component called the web. This structural member possesses a cross-section in the shape of either an I or an H.

In addition to steel, I beams can also be manufactured using aluminum alloys and low alloy steels to cater to different purposes such as bridges and building frames. I beams are produced in a variety of dimensions, thicknesses, widths, and other specifications to accommodate diverse applications.

These beams can be categorised basis the material type and size. For example, a beam with a depth of 12 inches and weighing 20 pounds per foot is denoted as 12×20. Contractors can select the appropriate dimensions of beams based on the specific requirements of their projects. Several factors should be taken into consideration during the decision-making process, including:

1. Deflection: Sufficient thickness is required to minimise deflection in the beam.

2. Vibration: The aim is to minimise vibration by considering the stiffness and mass of the beam.

3. Bending: The beam's overall strength must be adequate to withstand yield stresses and prevent bending.

4. Buckling: Torsional stresses can cause the I beam to buckle, so appropriate flanges should be chosen.

5.  Tension: It is crucial to select an I beam with the appropriate web thickness to prevent rippling or buckling under tension.

I beams are specifically engineered to flex instead of buckle when subjected to significant loads. The density of the beam is not uniform, with higher density concentrated in regions where the axial fibers are located, providing counterbalance to the areas experiencing the highest stress. Beams with a smaller cross-sectional area are preferred as they require less material while maintaining the desired shape.

I beams are specifically engineered to flex instead of buckle when subjected to significant loads. The density of the beam is not uniform, with higher density concentrated in regions where the axial fibers are located, providing counterbalance to the areas experiencing the highest stress. Beams with a smaller cross-sectional area are preferred as they require less material while maintaining the desired shape.

The use of I Beams in construction projects

I-beams, also known as H-beams or universal beams, are commonly used in construction for various structural purposes. Here are some of the typical applications of I-beams in construction:

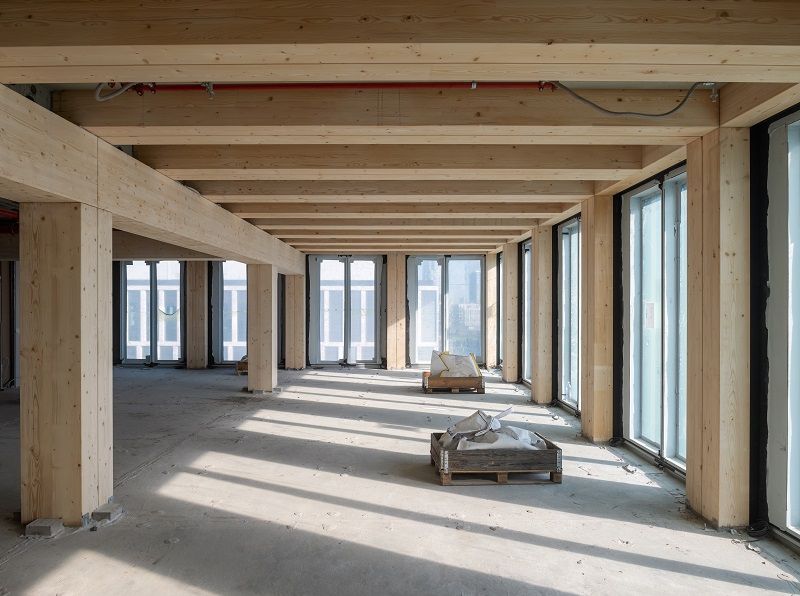

1.  Building Frames: I-beams are often used as primary structural elements in building frames, especially in commercial and industrial structures. They provide strength and rigidity to support the weight of the building, transfer loads, and distribute them to the foundation.

2. Bridges: I-beams are extensively used in bridge construction, particularly for the bridge girders. They offer excellent strength-to-weight ratio, making them suitable for spanning long distances and supporting heavy loads.

3. Column and Beam Systems: I-beams are frequently used as columns and beams in construction systems. They provide support and stability to structures, transferring vertical loads down to the foundation and distributing them evenly.

 4. Mezzanines and Platforms: I-beams are utilised in mezzanine floors and platforms to create elevated spaces within a building. They offer a sturdy framework for supporting the additional floors or platforms, allowing for efficient use of vertical space.

 5. Overhead Cranes and Hoists: I-beams are commonly employed in the construction of overhead crane systems and hoists. They serve as the main horizontal beam or runway on which the lifting mechanism moves, enabling the transport and lifting of heavy loads.

 6. Industrial Structures: I-beams find applications in various industrial structures, such as manufacturing facilities, warehouses, and storage facilities. They provide the necessary strength and stability to support heavy machinery, equipment, and storage systems.

 7. Support Structures: I-beams are used in the construction of various support structures, such as roof trusses, wall studs, and floor joists. They offer structural integrity and load-bearing capacity, ensuring the stability and safety of the overall construction.

These are just a few examples of where I-beams are commonly used in construction. Their versatility, strength, and structural properties make them a popular choice for a wide range of building and infrastructure projects.

I Beams also possess exceptional strength and offer cost and time savings, making them the preferred choice for structural supports in steel construction projects. Seeking advice from a specialist in structural steel fabrication can assist you in selecting the appropriate beam for your specific project. To receive a quotation for your upcoming fabrication project, feel free to reach out to us at www.jswonemsme.com
